Q94SA 90 °right angle stainless steel ferrule ball valve

Product Name: Q94SA 90 ° right angle stainless steel ferrule ball valve

Product model: Q94SA

Connection mode: thread, compression ferrule

Structural features: ferrule type at both ends

Product material: stainless steel 304 / 316

Thread standard: G, NPT, BSPT, BSP, DIN

Ferrule size: Ф6、Φ8、Ф10、Φ12、Ф14、Φ16、Ф18、Φ20、Ф22

Product pressure: ≤ 6.4 MPa

Operating temperature: ≤ 120 ℃

Medium used: water, oil, weak corrosive medium, etc

Handle material: plastic

Handle color: Black

Product Description:

Q94SA 90 °right angle stainless steel ferrule ball valve has the advantages of firm connection, high pressure resistance, good sealing and repeatability, convenient installation and maintenance, safe and reliable operation, etcThe opening and closing part (ball) is driven by the valve stem and rotates around the axis of the valve stem. It is mainly used to cut off or connect the medium in the pipeline, and can also be used for fluid regulation and control. Stainless steel ferrule ball valve is most suitable for use as switch and shut-off valve. Q93sa 90 ° right angle stainless steel ferrule ball valve is mainly characterized by compact structure, reliable sealing, simple structure and convenient maintenance. The sealing surface and spherical surface are often closed, which is not easy to be eroded by media and easy to operate and maintain. It is suitable for general working media such as water, solvent, acid and natural gas, It is also suitable for media with poor working conditions, such as oxygen, hydrogen peroxide, methane and ethylene, and has been widely used in various industries. The valve body of high-pressure butt welding ball valve can be integral or combined.

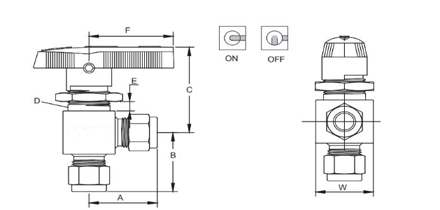

Structural drawing of Q94SA 90 °right angle stainless steel ferrule ball valve:

Q94SA 90 °right angle stainless steel ferrule ball valve parts material:

Components	Material	standard
handle	Plastic black gray
Top wire	SCM435	DIN916-1980
Stem	316、304	GB/T1220-1992
Gasket	316、304	GB/T1220-1992
Sealing ring	RPTFE	HG2-535
Guide seat	316、304	GB/T1220-1992
Sealing cap	RPTFE	HG2-535
Back mother	316、304	GB/T1220-1992
Valve body	316、304	GB/T1220-1992
Front card holder	316L、304	GB/T1220-1992
Rear card sleeve	316、304	GB/T1220-1992
Single card holder	316、304	GB/T1220-1992
Nut	316、304	GB/T1220-1992

Q94SA 90 °right angle stainless steel ferrule ball valve connection size:

Specifications	End Connection Size		Orifice		A
Specifications	(in)	(mm)	(in)	(mm)	(in)	(mm)
2	1/8	3.17	0.09	2.4	1.01	25.5
3	3/16	4.76	0.13	3.2	1.1	28
4	1/4	6.35	0.19	4.8	1.2	30
6	3/8	9.52	0.28	7.1	1.45	36.5
8	1/2	12.7	0.41	10.3	1.74	44.2
3mm	0.12	3	0.09	2.4	1.01	25.5
6mm	0.24	6	0.19	4.8	1.2	30
8mm	0.31	8	0.19	4.8	1.23	31.2
0mm	0.39	10	0.28	7.1	1.45	36.5
12mm	0.47	12	0.41	10.3	1.74	44.2

Q94SA 90 °right angle stainless steel ferrule ball valve connection size:

Specifications	B		C		D
Specifications	(in)	(mm)	(in)	(mm)	(in)	(mm)
2	1.01	25.5	1.36	34.5	0.59	15.1
3	1.1	28	1.36	34.5	0.59	15.1
4	1.2	30	1.47	37.3	0.78	19.8
6	1.45	36.5	2.07	52.5	1.13	28.7
8	1.74	44.2	2.44	62	1.5	38.1
3mm	1.01	25.5	1.36	34.5	0.59	15.1
6mm	1.2	30	1.47	37.3	0.59	15.1
8mm	1.23	31.2	1.47	37.3	0.78	19.8
10mm	1.45	36.5	2.07	52.5	1.13	28.7
12mm	1.74	44.2	2.44	62	1.5	38.1

Q94SA 90 °right angle stainless steel ferrule ball valve connection size:

Specifications	E		W		F		Cv
Specifications	(in)	(mm)	(in)	(mm)	(in)	(mm)	Cv
2	1/4	6.4	1.26	32	0.58	14.7	0.15
3	1/4	6.4	1.26	32	0.58	14.7	0.35
4	1/4	6.4	1.26	32	0.78	19.8	0.9
6	3/8	9.7	1.5	38.1	1.12	28.5	2
8	3/8	9.7	2.36	60	1.5	38	4.6
3mm	1/4	6.4	1.26	32	0.58	14.7	0.15
6mm	1/4	6.4	1.26	32	0.78	19.8	0.9
8mm	1/4	9.7	1.5	38.1	0.78	19.8	0.9
10mm	3/8	9.7	1.7	43	1.12	28.5	2
12mm	3/8	9.7	2.36	60	1.5	38	4.6
